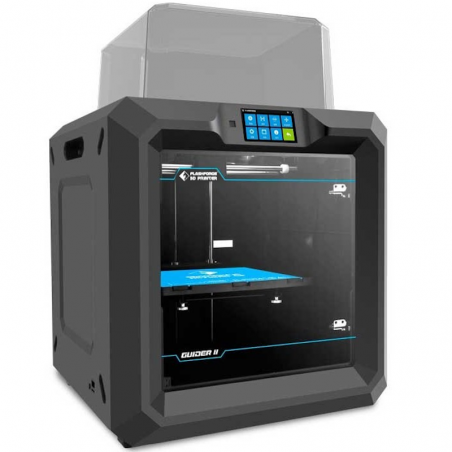

Flashforge Guider II - Impressora 3D

:IMP01018
1 540,65 €
preço com IVA incluído

A Guider II é uma impressora 3D FFF (Fused Filament Fabrication) profissional. Com um design estrutural todo em metal e cuberturas laterais feitas em ABS de alta resistência, a Guider II não só tem um desempenho de impressão estável, mas também é leve e durável. Com um volume de impressão de 250x280x300mm (21.5 litros) é ideal para o setor de arquitetura, construção, pesquisa científica, indústrias de produção e educação.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Compared to the first generation, Guider II enables the use of more types of filament due to the improved molded transparent top cover and front doors, allowing the enclosed print chamber temperature to be more stable. Guider II also includes a new Resume Printing function after power failure to ensure a smoother user experience.

Proven 3D printer structure

Guider II follows its predecessor in its reputable structure. All moving parts are processed with immense precision to ensure stable print performance. The Guider II has a 68 % increased build volume, higher precision and reduced failed print rate.

Great features

The Guider II comes brings a number of great features, such as:
• Innovative Extruder System – completely encased air supply system to elevate printing smoothness
• Heatable Build Plate – supports multiple mainstream filament types for diverse printing needs
• Touch Screen – Guider II is equipped with a 5-inch full colour touch screen and multilingual user interface. Here you can preview your printing models.

Efficient Slicing Software

FlashPrint, the mainstream slicing software used by FlashForge, has garnered outstanding reviews by the media and professionals. The software further offers an expert mode, which allows dozens of parameters to be set by the user, for greater printing flexibility. With the external/internal compensation feature the dimensional errors are reduced to 0.02 mm.



3D printing specifications
Assemble type Fully assembled
Build volume (in liters) 21.5
Build volume (in millimeters) 250 x 280 x 300 mm
Filament compatibility PLA | ECO PETG | ECO PLA Wood | ECO TPU (SHORE-value: 95A, 60D and 64D) | Soluble materials
Filament diameter 1.75 mm
Layer resolution 0.05–0.4 mm (50–400 microns)
Nozzle diameter 0.4 mm
Print speed 24 cm3 / h
Print technology FFF
Connectivity
Memory card No
USB Yes
Wi-Fi Yes
Features
Display Yes
Heated build platform Yes
Size & Weight
Product dimensions 549 x 490 x 561 mm
Product weight 30 kg
Software
File formats STL, OBJ
Included software FlashPrint
Supported Operating Systems Mac OSX, Windows





Parameters

 Creator ProFinderGuiderII
Extruder 1 3 4
Extruder 2 1 1
Printing Precision(mm) ±0.1-0.2 ±0.1-0.2 ±0.1-0.2
Size(mm) 526×360×550 420×420×420 549×490×755
Package Size(mm) 560×415×500 510×510×560 670×615×695
Build Volume(mm) 227×148×150 140×140×140 280×250×300
N.W./G.W.(kg) 14.8/21.5 11/15.7 30/38



HardwareCreator ProFinderGuider2
Dual-Extruder
Heatable Platform
Closed-Body
Touch Screen
WIFI Connect    √  √
USB Stick Connect    √  √
Ethernet Connect      √



Function CompareCreator ProDreamerGuider2
Assisting Leveling
Filament Detection
Resume Printing
RemovablePlatform
Video Monitor
Quiet Printing



IMP01018
