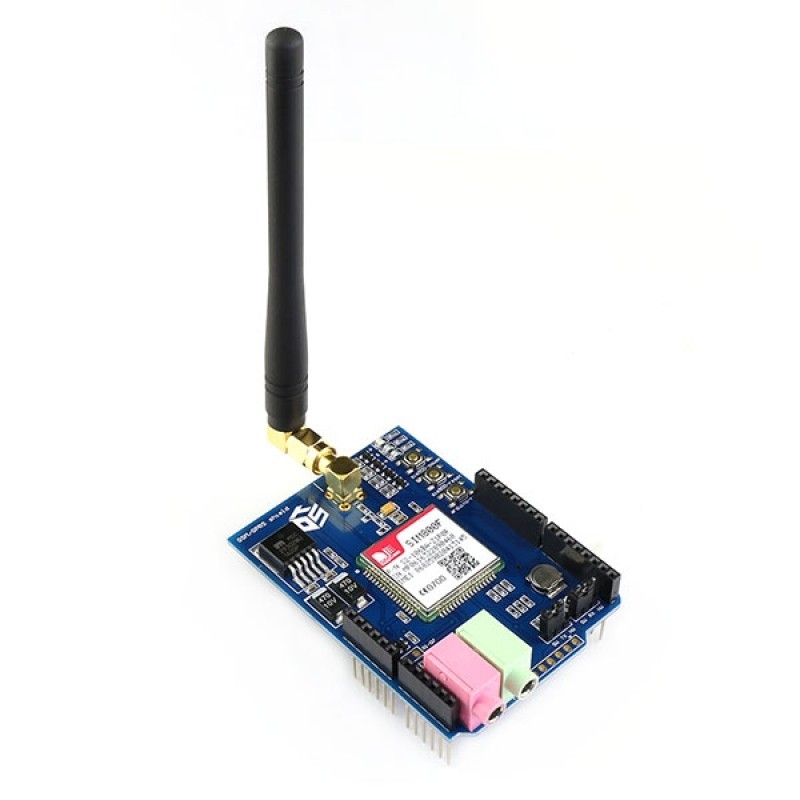

Shield GSM/GPRS c/ antena Quad-Band

:ARD03058
40,57 €
preço com IVA incluído

Shield de Comunicação GSM GPRS com antena incluída baseado no módulo SIM800F, otimizado para utilização com Arduino.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



The GPRS/GSM Shield provides you a way to use the GSM cell phone network to receive data from a remote location. The shield allows you to achieve this via any of the three methods:

  • Short Message Service
  • Audio
  • GPRS Service

The GPRS Shield is compatible with all boards which have the same form factor (and pinout) as a standard Arduino Board. The GPRS Shield is configured and controlled via its UART using simple AT commands. Based on the SIM800F module from SIMCOM, the GPRS Shield is like a cell phone. Besides the communications features, the GPRS Shield has 12 GPIOs, 2 PWMs and an ADC.

Note:

  • Because SIM800F peak current more than 2A. This shield must work with a external DC9V power supply.
  • If you are using MEGA2560. Just need to connect the middle pins of RX and TX jumpers to RX1 TX1 on Arduino Mega 2560. And change the code setting.

Features

  • Based on SIMCom's SIM800F Module
  • Quad-Band 850 / 900/ 1800 / 1900 MHz - would work on GSM networks in all countries across the world.
  • Control via AT commands - 3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands
  • Short Message Service - so that you can send small amounts of data over the network (ASCII or raw hexadecimal).
  • Embedded TCP/UDP stack - allows you to upload data to a web server.
  • Speaker and Headphone jacks - so that you can send DTMF signals or play recording like an answering machine.
  • SIM Card holder and GSM Antenna - present onboard.
  • 12 GPIOs, 2 PWMs and an ADC (all 2.8 volt logic) - to augment your Arduino.
  • Low power consumption - 1.5mA(sleep mode)
  • Industrial Temperature Range - -40°C to +85 °C



Shipping contents:

  • SIM800F Arduino GSM/GPRS Shield x 1
  • Quad-band Cellular Duck Antenna x 1

Document:

ARD03058

Downloads

esquematico.zip

Esquematico

Downloads (75.51k)

CodigoTeste.zip

Codigo de Teste

Downloads (46.69k)
