Placa com um relé SPDT que pode comutar cargas até 30A. Terminais no topo do relé são utilizados quando as cargas são superiores a 10A e os terminais de ligação na placa são para cargas até 10A. O accionamento da bobine do relé é feita através de um opto-acoplador.
DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

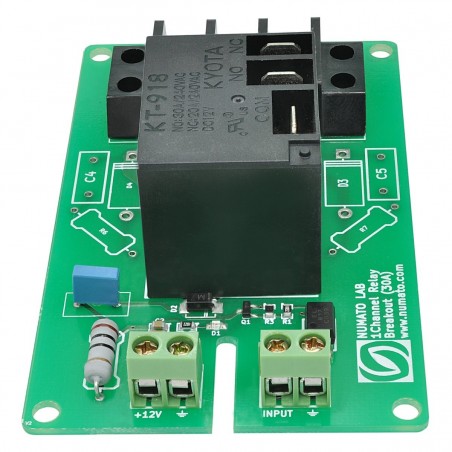

This board has a single SPDT relay which can switch up to 30A(Use the terminals on top of the relay for handling current in excess of 10A), The screw terminal can support up to 10A. The relay terminals (C, NC, NO) are accessible through screw terminals which makes wiring up very easy. Relay coil is rated for 12V DC. Place for soldering flyback diode or snubber circuit to eliminate the sudden voltage spike across the relay load while switching high current. Opto isolated input is an added advantage of this board which separates the relay circuit electrically from TTL input.
Number Of Relays | 1 |
Relay Type | Mechanical |
Max Relay Current Rating | 30A |
Communication | TTL Compatible Input |
More information visit the supplier website
Placa com um relé SPDT que pode comutar cargas até 30A. Terminais no topo do relé são utilizados quando as cargas são superiores a 10A e os terminais de ligação na placa são para cargas até 10A. O accionamento da bobine do relé é feita através de um opto-acoplador.
