Cubieboard4 CC-A80, mini PC

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

Here comes the Cubieboard4, also called CC-A80. It features an Allwinner A80 Octa-Core processor with high performance far beyond A10, A20.

What's On Board

1. Processor : Allwinner A80, Octa-Core big-LITTLE A15/A7,28nm
   • CPU : Arm Cortex A15x4 up to 2.0GHz, A7x4 up to 1.3GHz
   • GPU : PowerVR 64-core G6230
2. DDR3 2GB
3. 8GB eMMC Flash (bottom side)
4. USB 2.0 x 4
5. Expansion IO header
6. USB 3.0 OTG
7. RTC battery holder
8. TF slot
9. Power button
10. IR receiver
11. Mic input jack
12. Earphone output jack
13. WiFi + BT
14. Reset button
15. LED x 2
16. External antenna connector
17. Key for flashing
18. VGA interface
19. Gigabit Ethernet connector
20. HDMI interface
21. Power jack
22. External lithium battery interfere

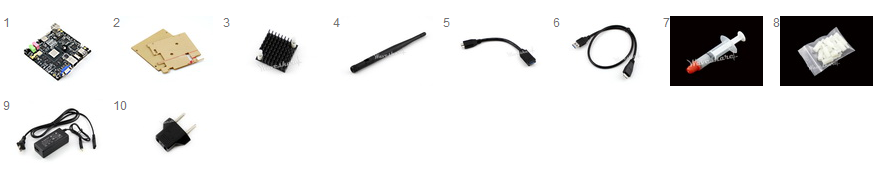

Package Content

1. Cubieboard4 CC-A80 x 1
2. Acrylic case x 1
3. 40*10*10 heat sink x 1
4. 5G/2.4G dual-band antenna x 1
5. USB OTG type A receptacle to Micro 3.0 plug cable x 1
6. USB type A plug to to Micro 3.0 plug cable x 1
7. Heat conductive silicon x 1
8. Screws pack x 1
9. Power Adapter US Standard 5V 4A 4/1.7mm x 1
10. US to EU Plug Adapter x 1
