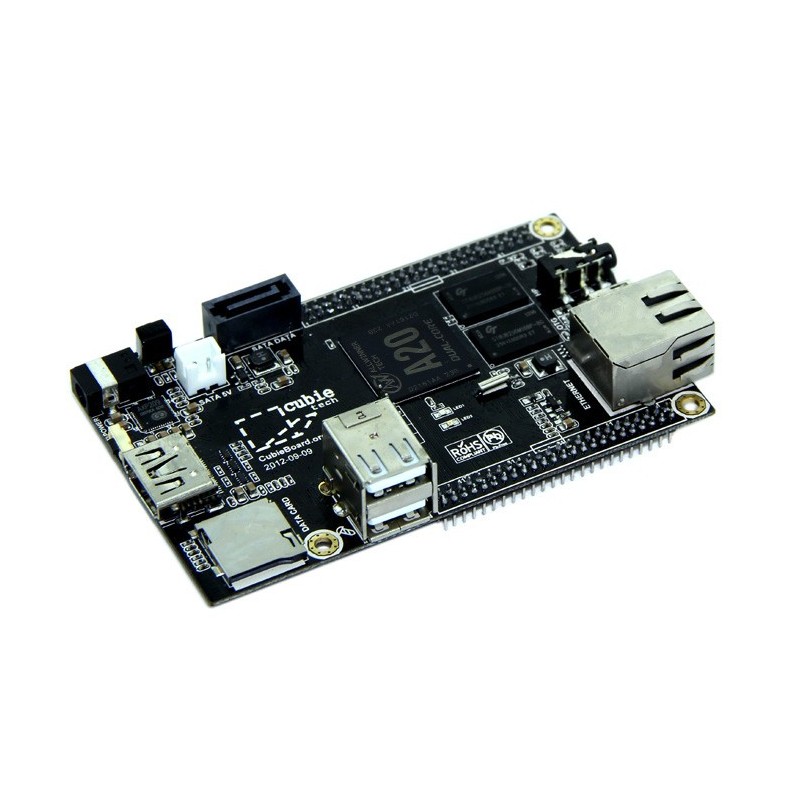

Cubieboard A20
  • Cubieboard A20
  • Cubieboard A20
  • Cubieboard A20
  • Cubieboard A20

Cubieboard 2 - A20

:PCO03001
70,33 €
43,33 € Poupe 27,00 €
preço com IVA incluído

A Cubieboard 2 usa um processador Allwinner A20 dual core e com GPU ARM Mail400MP2, memória DDR3 de 1GB, saída HDMI, porta de Rede, 4GB NAND Flash e um header de 96 pinos para acesso a I/os e portas de comunicação (i2C, SPI, etc). A cubieboard A20 suporta android 4.2 Jelly Bean , o Ubuntu 12.04 e outras distribuições Linux.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

An upgrade of cubieboard, cubieboard A20 is coming. Compared with cubieboard, the cubieboard 2 A20 uses an Allwinner 2 A20 processor which has a dual core CPU and twice GPU performance. On the software side, cubieboard2 supports both android 4.2 Jelly Bean, Ubuntu 12.04 and other Linux distributions.

Since cubieboard2 and cubieboard share the same PCB, all the accessories work with cubieboard can also fit cubieboard2.

Features
  • Allwinner A20 SOC
  • 96 pin extended interface
  • Built-in IR receiver
  • SATA supported
  • Supports 2.4GHz wireless keyboard and mouse

Specifications
  • CPU: ARM® Cortex™-A7 Dual-Core
  • GPU: ARM® Mali400MP2,Complies with OpenGL ES 2.0/1.1
  • Memory: 1GB DDR3 @960M
  • Video output: HDMI 1080p Output
  • Network: 10/100M Ethernet
  • Storage: 4GB internal NAND flash, up to 64GB on uSD slot, up to 2T on 2.5 SATA disk
  • IO ports: 2 USB Host, 1 micro SD slot, 1 SATA, 1 IR
  • Extended interfaces: 96 extend pin including I2C, SPI, RGB/LVDS, CSI/TS, FM-IN, ADC, CVBS, VGA, SPDIF-OUT, R-TP
  • Supports systems: Running Android, Ubuntu and other Linux distributions
  • Power supply:5VDC/2A power supply with 4.00mm(ext.diameter) x 1.7mm(int.diameter) barrel plug

Packing list
  • Main board x1
  • DC to USB power cable x1
  • SATA cable(data + power) x1
  • Heat Sink x 1

Documents
PCO03001
