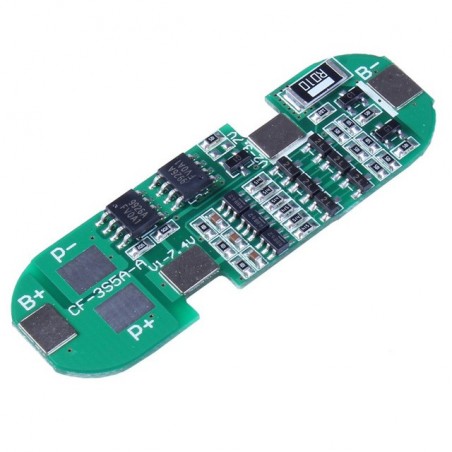

BMS para protecção Baterias 18650 3S 12,6V~14V 6A

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Product Introduction:

• Model:3 Serial 12V 6A protection board specially for 18650

• Size:53*17*2.5mm

• Continuous Operating Current:<6A

• Charging Voltage:12.6-14V

• Charging Current:<6A

• Overcharging Protection Voltage:single cell 4.20V+/-0.025V

• Overdischarging Protection Voltage:single cell 2.50V+/-0.1V

• Short Circuit Protection:yes

• Application Fits:3.7V cell/3 serial

• Load Power:

Notice:

1.Firstly detect cell voltage is basically stable,then serial connection
2.When soldering protection board,soldering iron and protection board touch time should not be too long,wihin 1.5s is best
