Placa de Expansão MISC CAPE p/ Beaglebone c/ RTC
  •  Placa de Expansão MISC CAPE p/ Beaglebone c/ RTC
  •  Placa de Expansão MISC CAPE p/ Beaglebone c/ RTC
  •  Placa de Expansão MISC CAPE p/ Beaglebone c/ RTC
  •  Placa de Expansão MISC CAPE p/ Beaglebone c/ RTC

Placa de Expansão MISC CAPE p/ Beaglebone c/ RTC

:PCO02002
9,67 €
preço com IVA incluído

BB Black Expansion CAPE, Features Miscellaneous Components and Functions

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



What's on the MISC CAPE

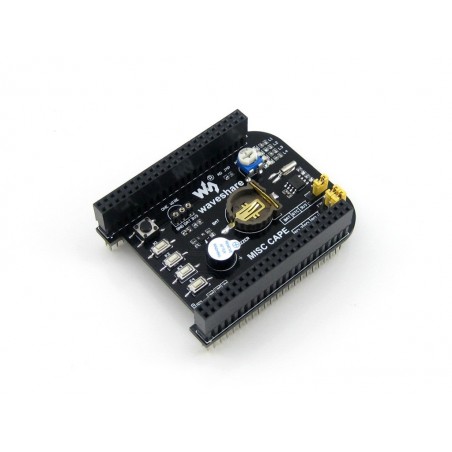

BB Black Expansion CAPE on board resource

  1. BB_BLACK connector : for connecting BB Black
  2. DEBUG interface : BB Black debug interface, for connecting serial modules
  3. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  4. BOOT selection button : Boot from TF card
  5. User button : 4 buttons
  6. Buzzer
  7. Power indicator
  8. User LED : 4 LEDs
  9. Potentiometer : AD adjustable potentiometer
  10. 32.768KHz crystal : for RTC
  11. PCF8563 : RTC
  12. RTC battery holder : for 3.3V battery
  13. RTC power selection jumper
  14. RTC I2C selection jumper: select I2C1 OR I2C2



Examples

Peripheral

Device/Interface

LINUX

LED

I/O

Y

Buzzer

PWM

Y

Push Buttons

EVENT2

Y

DS18B20 Temperature sensor

1-WIRE

Y

ADC

I/O

Y

RTC

I2C1

Y

PL2303 USB TO UART

UART0

Y

USB CAMERA

VIDEO0

Y

USB WIFI

WLAN0

Y



MISC CAPE Development Resources

MISC CAPE wiki

PCO02002
