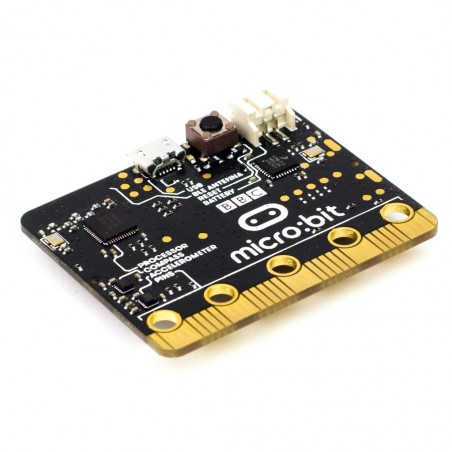

Placa BBC Micro:Bit v1

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

It measures 4cm by 5cm, is available in a range of colours, and designed to be fun and easy to use. It can be coded with something simple in seconds – like lighting up its LEDs or displaying a pattern – with no prior knowledge of computing.

It also connects to other devices, sensors, kits and objects, and is a companion to Arduino, Galileo, Kano, littleBits and Raspberry Pi, acting as a spring board to more complex learning.

Each element is completely programmable via easy-to-use software on a dedicated website that can be accessed from a PC, tablet or mobile.

• Microprocessor: 32-bit ARM® Cortex™ M0 CPU
• A 5x5 LED matrix with 25 red LEDs to light up and can display animiated patterns, scrolling text and alphanumeric characters
• Two programmable buttons. Use them as a games controller, or control music on a smart phone
• On-board motion detector or 3-AXIS digital accelerometer that can detect movement e.g. shake, tilt or free-fall
• A built-in compass, 3D magnetometer to sense which direction you're facing and your movement in degrees and detect the presence of certain metals and magnets
• Bluetooth® Smart Technology. Connect the micro:bit to other micro:bits, devices, phones, tablets, cameras and other everday objects
• 20 pin edge connector: This allows the micro:bit to be connected to other devices such as Raspberry Pi, Arduino, Galileo and Kano through a standard connector
• Micro-USB controller: This is controlled by a separate processor and presents the micro:bit to a computer as a memory stick
• Five Ring Input and Output (I/O) including power (PWR), ground (GRD) and 3 x I/O.
• System LED x 1 (yellow)

• System push button switch x 1
