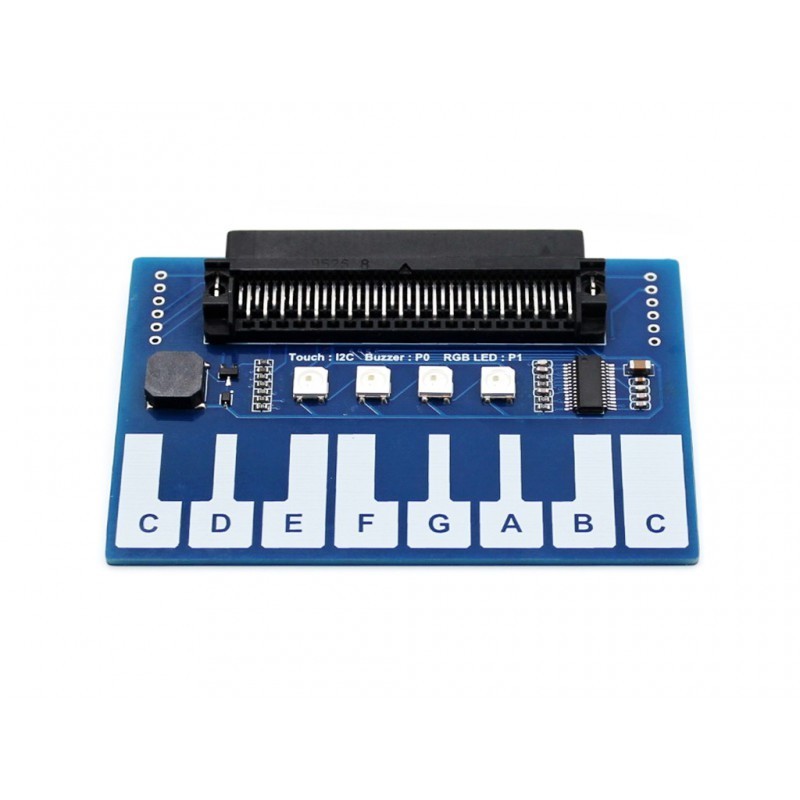

Mini Piano para micro:bit com teclas capacitivas

:PCO07006
13,45 €
preço com IVA incluído

Mini Módulo de Piano para micro: bit, Teclas de Toque para Reproduzir Música, com 4x LEDs RGB

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

Isn't it coooool to play your favorite song using the BBC micro:bit? Just plug it into this little piano, and enjoy.

Features

  • micro:bit edge connector, directly pluggable
  • Buzzer to play music
  • Onboard capacitive touch controller, 13x touch keys through I2C interface
  • 4x RGB LEDs, controlled by only one signal pin
  • Breakout module control pins, micro:bit SPI pins, and some of the GPIO pins, easy expansion
  • Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)

Specifications

  • Touch controller: TTP229
  • LED: WS2812B
  • LED color depth: 16777216 colors
  • Dimension: 85mm x 56mm
  • Operating voltage: 3.3V

Pinouts

SYMBOL DESCRIPTION
VCC Power (3.3V input)
GND Ground
P0 Buzzer control pin, related to mcro:bit P0
P1 LED control pin, related to mcro:bit P1
SCL Touch keys control pin, I2C clock
SDA Touch keys control pin, I2C data

Dimensions

Piano for micro:bit dimensions

Development Resources

Wiki : www.waveshare.com/wiki/Piano_for_micro_bit

Weight: 0.024 kg

  1. Piano for micro:bit x1
