Fonte de Alimentação Regulável 0~80Vdc 6A 480W

:FAL03003
39,27 €
preço com IVA incluído

Esta é uma fonte de alimentação regulada com saída ajustável. Ela aceita entrada selecionável de 110V/220V CA e fornece saída de 0~80V DC ajustável, a corrente de saída é de até 6A. Há também um display LED de 3 dígitos para mostrar a tensão de saída.

Quantidade
Últimos artigos em stock

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

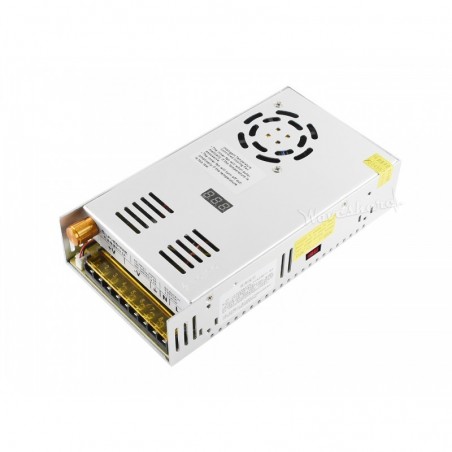

This is a regulated power supply with adjustable output. It accepts selectable 110V / 220V AC input, and then provides adjustable 0~80V DC output, the output current is up to 6A. There is also a 3-digit LED display to show the output voltage.

Features

  • Strengthened aluminium alloy case, reliable & durable
  • Effective cut-out on the case body, better heat sinking, nice looking
  • Built-in temperature controlled cooling fan, automatically on / off according to the temperature
  • 3-digit LED display for monitoring the output voltage, high accuracy
  • Output voltage adjustment knob, allows to adjust the output voltage at any time
  • 110V / 220V AC input, selected by onboard switch, 220V by default

Specifications

  • Product type: Adjustable power supply
  • Input voltage: AC 110V/220V±15% 47~63Hz
  • Output voltage: 0~80V (adjustable)
  • Output current: 6A
  • Rated power: 480W
  • Over load protection: 105%~200% (rated load), auto recover
  • Over voltage protection: 115%~135% (rated output voltage)
  • Short circuit protection: auto recover
  • Dimension: 21.5mm × 11.5mm × 5mm
  • Operating environment: -10℃~50℃, 20%~90%RH (non-condensing)

Applications

  • DC devices
  • DC motor stepless speed adjustment
  • LED stepless brightness adjustment
  • Science test
  • Student experiment

Wring Instruction

Adjustable-Power-Supply-80V-6A-interface

Note: When working with inductive loads like motor, fan, please pay attention to the start up current of the load, which should be lower than 6A, otherwise the power supply may be damaged.

Package Content

Weight: 0.927 kg

  1. Adjustable Power Supply 80V 6A x1
