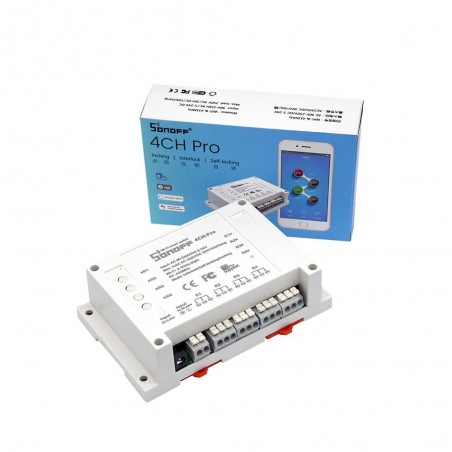

Sonoff 4CH Pro - 4 Gang Inching/Self-locking/Interlock WiFi RF Smart Switch
  • Sonoff 4CH Pro - 4 Gang Inching/Self-locking/Interlock WiFi RF Smart Switch
  • Sonoff 4CH Pro - 4 Gang Inching/Self-locking/Interlock WiFi RF Smart Switch
  • Sonoff 4CH Pro - 4 Gang Inching/Self-locking/Interlock WiFi RF Smart Switch

Sonoff 4CH Pro - 4 Gang Inching/Self-locking/Interlock WiFi RF Smart Switch

:MRE04008
€28.37

DISCONTINUED

Alternative MRE04019

Sonoff 4CH Pro is a 4 gang WiFi switch. It support switching among 3 working modes: interlock/self-locking/inching mode. 4CH Pro supports to set 0.25-4s delay in inching mode. This feature allows you to let your switch turn on for a few seconds then goes off, which works like a pulse switch.

Features

  • Turn on/off 4 home appliances remotely
  • Supports switching among inching/interlock/self-locking modes
  • Device status's synchronously display
  • Scheduled/Countdown timers
  • Share control
  • Supports setting power on status
  • 433MHz RF Remote control
  • Works with Amazon Echo, Echo Dot, Amazon Tap
  • Works with Google Home, Google Nest
  • Works with IFTTT

Specifications

  • Voltage Range: 90-250V AC(50/60Hz) / 5-24V DC
  • Max Current: 10A/gang
  • Max Power: 2200W/gang
  • Wireless Frequency: WiFi 2.4GHz
  • Wireless Standard: 802.11 b/g/n & 433MHz
  • Security Mechanism: WPA-PSK/WPA2-PSK
  • Enclosure Material: Fire-retardant ABS V0
  • Gang: 4
  • Dimension:145*90*40 (mm)
  • Operating Temperature(recommended): 0ºC-40ºC(32°F-104°F)
  • Operating Humidity: 5%-90%RH, Non-condensing
  • Certification: CE/FCC/RoHS (Download the Certificate and Reports)

Package

Sonoff 4CH Pro or Sonoff 4CH Pro R2 *1

Users can remotely turn on/off the connected lights/appliances by iOS/Android App eWeLink or 433MHz RF Remote. They can create 8 enabled single/repeat/countdown timers to automatically turn on/off at the specified time. The timers can run themselves even when the network is unavailable. To let the devices be controlled by their family, users can simply share the devices with their accounts and allow specified timers permissions. They can even create some scenes or smart scenes to trigger ON/OFF the switch.

Works With Amazon Alexa

You can ask Alexa to turn on/off Sonoff 4CH Pro (R2).

Standard voice control commands phrases (if you just say the device name, Alexa will turn on/off all the 4 gangs immediately):

Alexa, turn on {deviceName}
Alexa, turn off {deviceName}

Alexa, turn on {deviceName} {gangName}
Alexa, turn off {deviceName} {gangName}

The default names for the 4 gangs are: outlet 1, outlet 2, outlet 3, outlet 4. You can change the name if you like.

Explanation: if the device name of your Sonoff 4CH is "My Switch", the gang name is "Outlet 1", then you can control with "Alexa, turn on My Switch Outlet 1".

For detailed tutorial, please click here.

In self-locking mode, users can turn on/off the 4 connected devices instantly and separately.

In interlock mode, users can turn on one device every time, and turn off other devices at the same time.

In inching mode, users can turn on the connected devices for 0.25-4s (Sonoff 4CH Pro) or 1-16s (Sonoff 4CH Pro R2) then auto-off.

Users can set some devices in inching mode, while the others in self-locking mode.

MRE04008
