The assisted calibration, filament run-out detection, Wi-Fi support and an easy-to-use colour touchscreen are some of the features that will get your 3D prints going quickly. It is perfect for situations where a single user or a group of users need access to a 3D printer.

Up-to-date and well designed

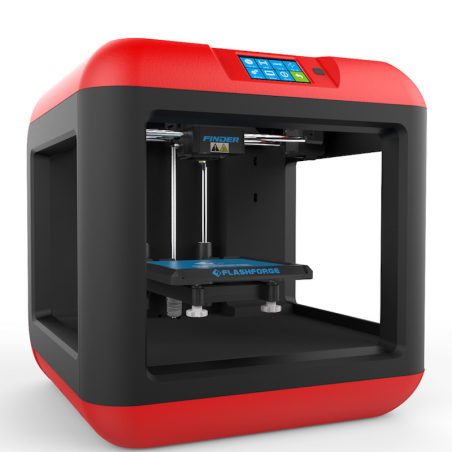

The Flashforge Finder chassis is made of sturdy injection moulded ABS composite and is designed to offer an optimised stability and function. The built-in power supply, the filament spool casing and the LCD touchscreen makes the machine compact, easy-to-use and easy to transport. No details or components are sticking out from the bounding volume of the 3D printer.

The 3D print head of the Flashforge Finder has a perfectly designed cooling fan, utilizing a 360 degree airflow. This gives accurate and distinct 3D print shapes in PLA filament. The electronics guidance system in the Flashforge Finder operates very quitely, resulting in the step motors are hardly audible (at 50dB or even less) when the print head moves.

Practical build plate

The detachable build plate can easily be slided in and out of its place in the 3D printer build platform. When the 3D print is ready the plate is pulled out and put on a table for easier removal of the printed item.

The build surface of the plate consists of a completely flat glass surface. It is covered with a thick self-adhesive plastic coating on which the 3D print sticks when printed. This exchangable coating is very durable and lasts as long as it is kept clean. Alternatively you can 3D print directly on to the glass surface if it is covered with glue from glue stick. Covering the glass with blue masking tape for the print to stick on also works fine.

The Flashforge Finder build plate is not heated as the 3D printer is optimised for PLA filament prints, which do not require heated build plates. This reduces maintenance and results in faster 3D prints. Operating without heated plate is also a safety benefit, perfect in a classroom environment.

The build volume is 140 x 140 x 140 mm, which is more than enough for most prints. When bigger objects are to be printed they can easily be sliced up in two or more segments using the attached FlashPrint software. These parts can be printed separately and then connected with glue or welded.

Calibrating the build plate

The reliability of a fused filament fabrication 3D printer largely lays in the build plate. It should be adjusted leveled to the X and Y axis and also have the correct distance to the print nozzle. Flashforge Finder has a built-in distance sensor. Combined with the guided instructions on the touchscreen LCD, the build plate calibration is an effortless procedure.

Normally you only need to calibrate the build plate the first time you use the 3D printer. After that the plate keeps the correct angle and level. If needed the build plate can be re-calibrated for optimum results.

Built-in filament spool holder

Flashforge Finder has a special holder for the filament spools which is neatly folded into a dedicated space inside the 3D printer. This means the spool does not stick out from the machine and is also kept dust and tear protected.

The spool holder has a built-in filament run-out detection function. If you start a 3D print it can read if there is enough filament available on the spool. If the print require more filament than what is available the Finder pauses the print. An instruction on the touchscreen lets you refill the filament and the print is resumed from where it was paused.

The filament run-out detection function can be turned off in the settings menu on the touchscreen. Flashforge Finder can also utilize PLA filaments from a range of spool sizes and manufacturers (e.g. 1 kg or bigger) if they are supported and kept up and the filament thread is guided into the 3D printer.

Standard 1.75 mm filament

Flashforge Finder prints with filaments in the standard diameter: 1.75 mm. Flashforge Finder prints with materials such as standard PLA, ECO PETG, ECO PLA Wood och ECO TPU (with SHORE-values 95A, 60D and 64D). Note that the ECO filaments are available in spools of 1 kg, and they will therefore not fit Flashforge Finder's built-in filament spool holder. If you wish to print with ECO filaments, we recommend you to 3D print a Universal Stand-Alone Filament Spool Holder.

Distinct touchscreen

Flashforge Finder has a distinct colour touchscreen placed center top of the printer. Its position and angle makes operating and checking the printer through the screen easy

The interface with its large icons – including graphics and text – makes the 3D printer easy to use and its settings easy to understand. Via the screen you can preheat the extruder, start prints from an internal or USB memory file, and also access all of the 3D printer settings.

3D print software

3D prints on the Flashforge Finder are prepared with the attached FlashPrint software. It is free to install on an unlimited number of computers and is available for both Mac OS X and Windows operating systems.

In the straightforward interface of FlashPrint the build volume is represented in 3D, where the 3D models to be printed are imported. All objects can be scaled, rotated and moved as desired onto the build plate within the software. If you import multiple files the software can automatically placed them aligned optimally.

With the ‘Supports’ function you can automatically or manually create supports for prints that require support structures due to overhangs. The support structures are printed using the same material as the printed object and is easily removed when the print is ready.

In FlashPrint there are preset profiles for printing in different resolutions: Low, Normal, High, and Super. If you want you can fine-tune and experiment with the value settings to fit your needs.

The ‘Cut’ function can split up 3D files into two or more parts. This comes in handy when an object is too large for the build volume and needs to printed in several passes. In some cases it can also be useful to split up a model in multiple parts so that every part individually gets printed simpler or faster, e.g. without the need for support structures.

FlashPrint can also open regular 2D images in .jpg, .png, and .bmp formats. The software transforms the 2D image to a 3D model. The pixel brightness (greyscale value) sets the thickness of the 3D model. The user can set size and height of the model. This function makes it easy to make e.g. text signs or stamps from ordinary photos!

FlashPrint creates a 3D print file that is transferred to the Finder before it is printed. This can be done via the included USB cable, wireless Wi-Fi or copied onto the included USB memory stick which is inserted on the side of the printer. Printing the file is executed with touchscreen commands.

Flashforge Finder is based on open 3D print standards which also enables third party software like the function-filled Simplify3D to be used with the 3D printer.

Documentation

• Flashforge Finder User Guide
• Flashforge Finder Quick Start Guide
