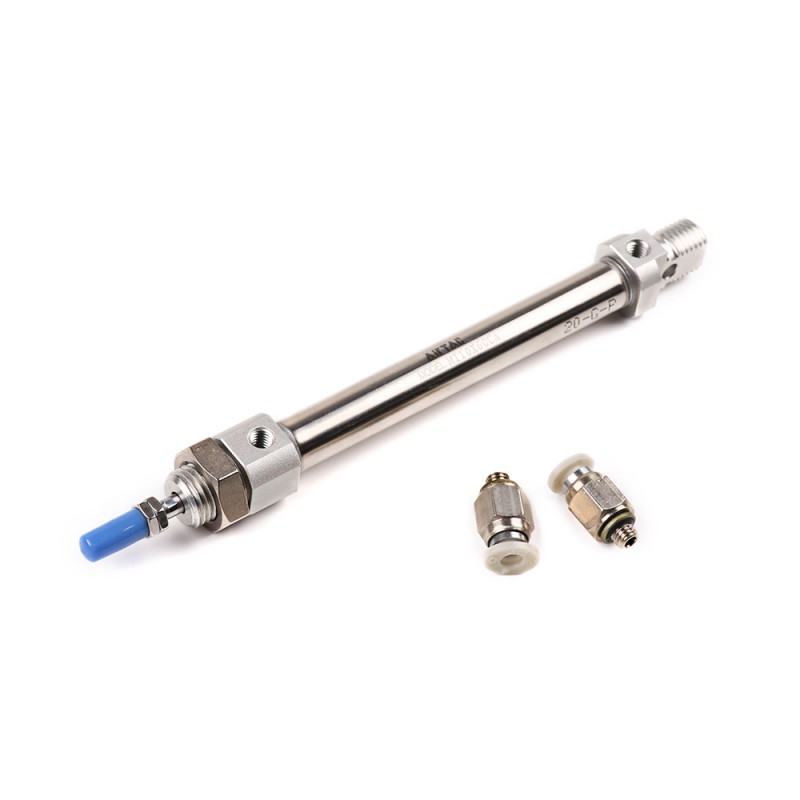

It is a mini cylinder of double acting type with a bore size of 10mm and stroke of 60mm. The installation methods are panel installation, double bracket installation, tailstock installation, etc. and the mounting nut is M12X1.25. It is used with M5-φ4 quick plug connector and its theoretical thrust is 39.3N and the voltage 33N under the pressure of 0.5MPa.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Description:
It is a mini cylinder of double acting type with a bore size of 10mm and stroke of 60mm. The installation methods are panel installation,double bracket installation, tailstock installation, etc. and the mounting nut is M12X1.25. It is used with M5-φ4 quick plug connector and its theoretical thrust is 39.3N and the tension 33N under the pressure of 0.5MPa.
Features:
Size Charts(mm):
