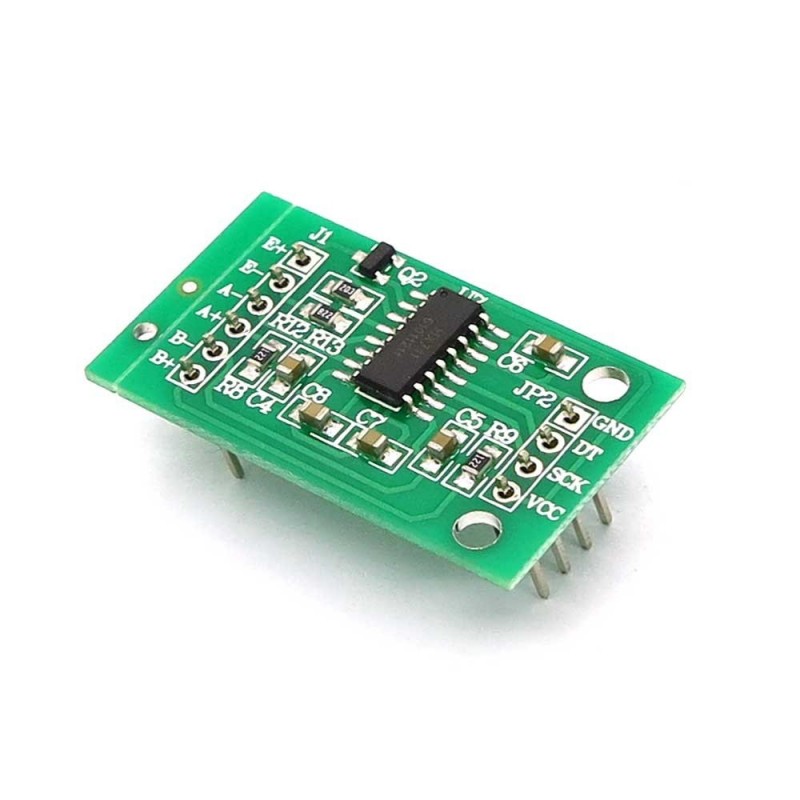

HX711 Dual-Channel Weighing Sensor Module

:SEN11003
€5.28
Tax included

DISCONTINUED

HX711 is an electronic scale module, whose working principle is to convert the measured changes in resistance value changes, through the conversion circuit into electrical output. The module communicates with the host computer through TTL 232.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview



HX711 is an electronic scale module, whose working principle is to convert the measured changes in resistance value changes, through the conversion circuit into electrical output. The module communicates with the host computer through TTL 232.



Advantages



Simple structure, easy to use, stable and reliable performance, high sensitivity and measurement speed and so on.



Application



Widely used in aerospace, mechanical, electrical, chemical, construction, medicine and many other fields, used to measure force, pressure, displacement, strain, torque, acceleration.



Specification



  • Differential input voltage: ±40mV(Full-scale differential input voltage is ± 40mV)

  • Data accuracy: 24 bit (24 bit A / D converter chip.)

  • Refresh frequency: 80 Hz

  • Operating Voltage : 5V DC

  • Operating current : <10 mA

  • Size:38mm*21mm*10mm



Datasheet

Schematic

Source Code
