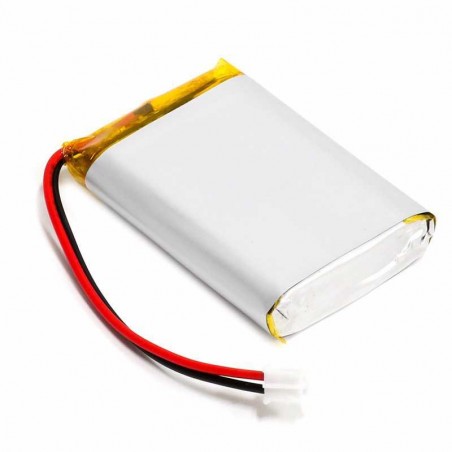

mBot LiPo Battery Pack 3,75V 1800mAh
  • mBot LiPo Battery Pack 3,75V 1800mAh

LiPo Battery Pack 3,7V 1800mAh JST PH2

:BAT01053
€13.74

MBot lithium battery is the official battery to use with the mBot robot series.
Battery with protective plate (to prevent over charging / over discharge / short circuit / over current protection)

You could also use this battery for other applications, only need to confirm the polarity of the JST PH2 connector (+Red) and ( - Black):

Conector

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features:

  • Battery type: polymer lithium battery / rechargeable battery
  • Battery Protection Circuit (PCM) included: Proection against: overcharge, overdischarge, shortcircuit, overvoltage, Overcurent
  • Battery capacity: 1800mAh
  • Nominal battery voltage: 3.7V
  • Charging up voltage: 4.28V
  • Discharge voltage: 3.0V
  • Maximum Loading current (peak): 2000mAh
  • Maximum Loading current (constant): 1000mAh
  • Maximum discharge current: 1800mAh
  • Weight: 36g
  • Battery size: 10*35*53mm
  • Cables lenght: 50mm
  • connector: JST-PHR-02

BAT01053
