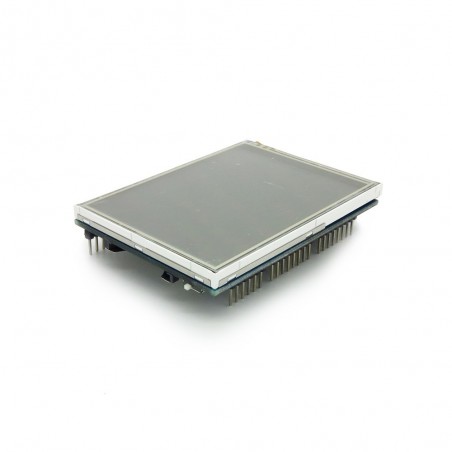

3.2" TFT LCD Touch Arduino Shield

:ARD03044
€28.21
Tax included

DESCONTINUED

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Arduino 3.2" TFT LCD Touch shield is an Arduino Mega compatible multicolored TFT display with touch-screen and SD card socket. It is available in an Arduino MEGA shield compatible pinout for attachment. The TFT driver is based on SSD1289 with 8bit data and 4bit control interface.

The Arduino 3.2" TFT LCD Touch shield can work with both 3.3V and 5V, so it can dispaly on Chipkit MAX32 as well.

This shield is compatible with UTFT library for Arduino Mega, chipKit Max32 and
their compatible boards. You can down load the library here: http://henningkarlsen.com/electronics/library.php?id=52



Features

  • Arduino UNO Rev3 / Mega Shield compatible footprint
  • Arduino library UTFT support
  • TFTResolution : 240 x 320 pixels
  • Size : 3.2"
  • Colors : 262K
  • Backlight : LED
  • Driver IC: SSD1289



Hardware

File:Arduino Mega 3.2 TFT LCD Touch Display Shield-8.jpg



Arduino Mega PIN

Description

D2

T_IRQ

D3

T_DOUT

D4

T_DIN

D5

T_CS

D6

T_CLK

D22

DB8

D23

DB9

D24

DB10

D25

DB11

D26

DB12

D27

DB13

D28

DB14

D29

DB15

D30

DB7

D31

DB6

D32

DB5

D33

DB4

D34

DB3

D35

DB2

D36

DB1

D37

DB0

D38

RS

D39

WR

D40

CS

D41

RST

D50

SD_MISO

D51

SD_MOSI

D52

SD_SCK

D53

SD_NSS





Specification

Version 1.0
Compatible Mainboard
  • Arduino MEGA
  • Iteaduino ADK
  • ChipKit MAX32
Shield Functions
  • Storage
  • Display
Board Size 80mm x 58mm
Operation Level
  • Digital 3.3V
  • Digital 5V
Stackable No
Model IM120417021
Accessories N/A
Weight 70.00g





Documents

Datasheet (IM120417021 3.2 TFT LCD Touch_Shield)
