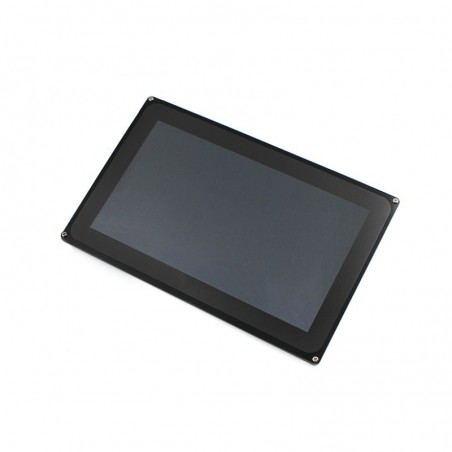

10.1inch Capacitive Touch LCD (D) 1024x600
  • 10.1inch Capacitive Touch LCD (D) 1024x600
  •  10.1inch Capacitive Touch LCD (D) 1024x600
  •  10.1inch Capacitive Touch LCD (D) 1024x600

10.1inch Capacitive Touch LCD (D) 1024x600

:LCD01044
€60.89
Tax included

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



Key Parameters

LCD Type

TFT

Interface

RGB/LVDS

Touch Controller

FT5406

Touch Panel Type

Capacitive (5 multi-touch)

Backlight

LED

Display Size (mm)

222.72(W)×125.28(H)

Dot Pitch (mm)

0.2175(W)×0.2088(H)

Aspect Ratio

16 : 9

Resolution

1024 × 3(RGB) x 600 (Pixel)

Power Consumption

TBD

Backlight Current

TBD

Operating Temp. (℃)

0 ~ +70



RGB Interface Definition

PIN NO.

SYMBOL

DESCRIPTION

Type

FUNCTION

1

BL_VDD

Power positive

Power

Backlight power, connects to 5V power supply

2

BL_VDD

3

GND

Ground

GND

4

VDD

Power positive

Connects to 3.3V power supply

5

R0

Data pin

Input

Red data

6

R1

7

R2

8

R3

9

R4

10

R5

11

R6

12

R7

13

G0

Data pin

Input

Green data

14

G1

15

G2

16

G3

17

G4

18

G5

19

G6

20

G7

21

B0

Data pin

Input

Blue data

22

B1

23

B2

24

B3

25

B4

26

B5

27

B6

28

B7

29

GND

Ground

Power

GND

30

DCLK

LCD clock

Input

LCD clock signal

31

DISP

Backlight control enable

Input

Connects to VDD

32

HSYNC

Horizontal Synchronization

Input

Horizontal Synchronization signal input

33

VSYNC

Vertical Synchronization

Input

Vertical Synchronization signal input

34

DE

Control mode selection

Input

DE = 0 : SYNC mode
DE = 1 : DE mode

35

PWM

Backlight brightness adjustment

Input

PWM signal for adjusting backlight

36

GND

Ground

Power

GND

37

I2C_SDA

I2C data

Input/Output

I2C data pin, read/write data

38

I2C_SCL

I2C clock

Input

I2C clock pin

39

CAP_WAKE

WAKEUP

Output

Wakeup external TP controller

40

CAP_INT

Interrupt

Output

External touch interrupt



LVDS Interface Definition

PIN NO.

SYMBOL

DESCRIPTION

Type

FUNCTION

1

BL_VDD

Power positive

Power

Backlight power, connects to 5V power supply

2

BL_VDD

3

BL_VDD

4

NC

5

DISP

Backlight control enable

Input

Connects to VDD

6

PWM

Backlight brightness adjustment

Input

PWM signal for adjusting backlight

7

NC

8

BL_GND

Ground

Power

Backlight reference ground, connects to GND

9

BL_GND

10

BL_GND

11

CAP_WAKE

WAKEUP

Output

Wakeup external TP controller

12

CAP_INT

Interrupt

Output

External touch interrupt

13

GND

Ground

Power

GND

14

NC

15

NC

16

GND

Ground

Power

GND

17

NC

18

NC

19

GND

Ground

Power

GND

20

LVDS-D3P

Data pin

Input

Differential data input

21

LVDS-D3N

22

GND

Ground

Power

GND

23

LVDS-CLKP

Clock pin

Input

Differential clock input

24

LVDS-CLKN

25

GND

Ground

Power

GND

26

LVDS-D2P

Data pin

Input

Differential data input

27

LVDS-D2N

28

GND

Ground

Power

GND

29

LVDS-D1P

Data pin

Input

Differential data input

30

LVDS-D1N

31

GND

Ground

Power

GND

32

LVDS-D0P

Data pin

Input

Differential data input

33

LVDS-D0N

34

I2C_SDA

I2C data

Input/Output

I2C data pin, read/write data

35

I2C_SCL

I2C clock

Input

I2C clock pin

36

NC

37

VDD

Power positive

Power

Connects to 3.3V power supply

38

VDD

39

VDD

40

NC



Development Resources

Wiki : www.waveshare.com/wiki/10.1inch_Capacitive_Touch_LCD_(D)



Compatibility

This item is compatible with the following products:

  • MarsBoard RK3066
  • MarsBoard RK3066 Pro
  • MarsBoard A20



Selection Guide

LCD01044
