ITDB02-2.2S
  • ITDB02-2.2S
  • ITDB02-2.2S
  • ITDB02-2.2S
  • ITDB02-2.2S
  • ITDB02-2.2S
  • ITDB02-2.2S

ITDB02-2.2S

:LCD01030
€16.22
€13.22 Save €3.00

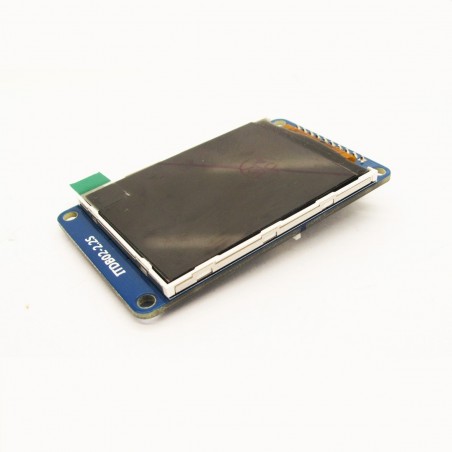

ITDB02-2.2S module is 2.2" SPI TFT LCD with 262K color 320 x 240 resolutions.

Overview



ITDB02-2.2S module is 2.2" SPI TFT LCD with 262K color 320 x 240 resolutions. The controller of this LCD module is ILI9341, providing pin-saving SPI communication without sacrificing the data transmitting speed. Since its interface is SPI, you need 6 Dupont lines (SCK,MISO,MOSI,CS,D/C,RST) to control this LCD module. Moreover, this module integrates an SD card slot.



Documents



Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.



Model

IM140714001

Display Size

2.2“

Display Resolution

320 * 240

Display Interface

Serial

Display Controller

No

Expand

SD Card Socket

Board Size

41mm X 68mm X 1.6mm

Weight

38.00g

TFT display interface

N/A

LCD01030
