Sensor de Peso 0-500g - SEN128A3B
  • Sensor de Peso 0-500g - SEN128A3B

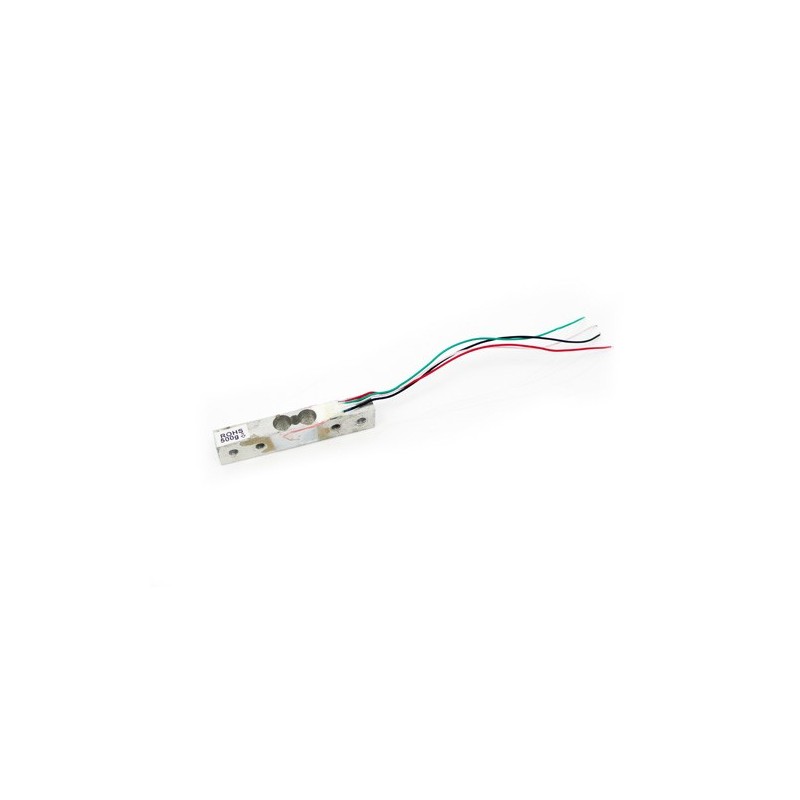

Weight Sensor (Load Cell) 0-500g - SEN128A3B

:SEN05010
€19.76
Tax included

Weight Sensor (Load Cell) 0-500g

Quantity

Description:

Applicable to electronic scale, price computering scale, electronic platform scale, digital scale; parcel post scale, electronic balance and all varieties of commercial scales by single load cell.



Specifications:

  • Capacity g 500g
  • Output sensitivity mv/v 0.5±0.1
  • Nonlinearity %.F.S 0.05
  • Hysteresis %F.S 0.05
  • Repeatability %F.S 0.05
  • Creep(30min) %.F.S 0.05
  • Temperature effect on sensitivity %F.S/10℃ 0.05
  • Temperature effect on zero %F.S/10℃ 0.05
  • Zero balance %F.S ±0.5
  • Input resistance Ω(ohms) 1120±10
  • Output resistance Ω(ohms) 1000±10
  • Insulation resistance MΩ(ohms) ≥2000
  • Recommended excitation voltage v 5v
  • Method of connecting wire red Exc+ black Exc–green Sig+ white Sig-



Documents:



Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.
