• DISCONTINUED

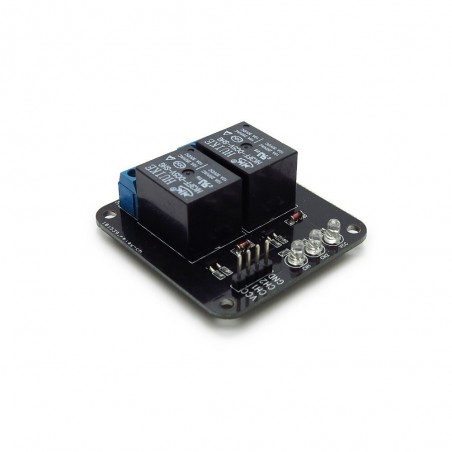

Arduino 2-Channel Relay Shield Module
  • Arduino 2-Channel Relay Shield Module
  • Arduino 2-Channel Relay Shield Module
  • Arduino 2-Channel Relay Shield Module
  • Arduino 2-Channel Relay Shield Module

Arduino 2-Channel Relay Shield Module

:MRE01026
€4.39

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



Overview

This is a 5V 2-Channels Relay module, It can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM and MSP430.

2 relays are included in this module, with “NC” ports means “Normally connected to COM” and “NO” ports means “Normally open to COM”. This module is also equipped with 2 LEDS to show the status of relays.



Features

  • 2 mechanical relays with status indicator LED
  • Both “NC” and “NO” ports for each relay



Download

Schematic



Technical support

For technical support, please open a ticket on Itead Support System.



Additional Information

Link Wiki

N/A

Module Type

Control

Weight

40.0000

Model

IM120525001

Board Size

4.6 x 4.6 x 2cm

Version

1

Operation Level

Digital 5V

MRE01026
