• DISCONTINUED

2 Solid State Relay module

:MRE03013
€5.49

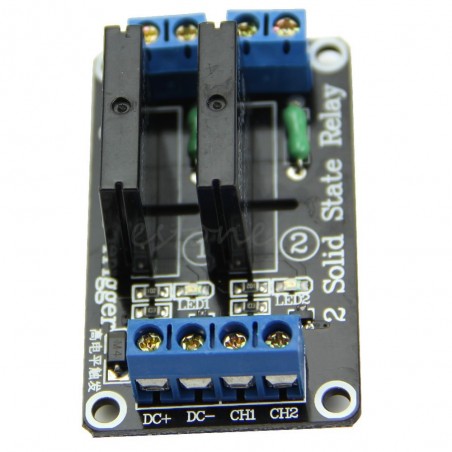

Solid State Relay ( SSR ) module with 2 SSR relays 2A 240V and 5V control.

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.


5 V Omron solid state relay 240V 2A output with resistive fuse 240V 2A

  • Size: 53 * 32 * 23mm / 2.08 * 1.31 * 0.9 "
  • Input power: 5 V DC (160mA)
  • Input control signal voltage:
    • (0-2.5V state low relay off)
    • (3.3-5V State Relay on)


Module interface:
Inputs:

  • DC +: positive power supply (relay voltage)
  • DC -: Power negative
  • Ch: signal to trigger (high trigger efficiency)

Voltage version quiescent current working current trigger voltage trigger current
1 lane 5 V 0mA 12.5mA 3.3-5 V 2mA
2 lanes 5 V 0mA 22.5mA 3.3-5 V 2mA





MRE03013
