1 Channel Relay Breakout Module (30A)
  • 1 Channel Relay Breakout Module (30A)
  • 1 Channel Relay Breakout Module (30A)
  • 1 Channel Relay Breakout Module (30A)
  • 1 Channel Relay Breakout Module (30A)

1 Channel Relay Breakout Module (30A)

:MRE03000
€12.11
€7.11 Save €5.00

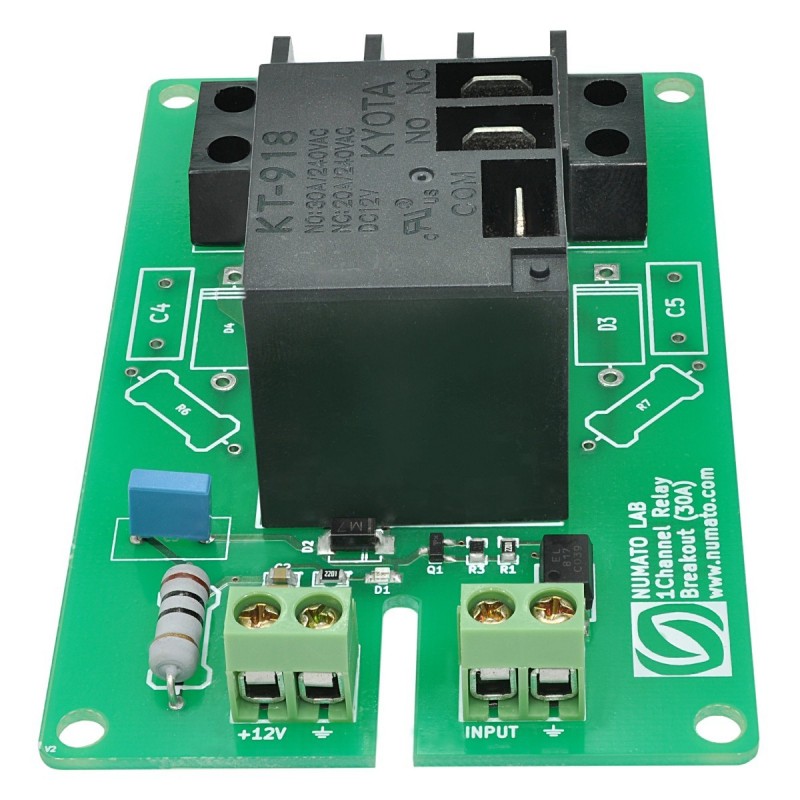

This board has a single SPDT relay which can switch up to 30A(Use the terminals on top of the relay for handling current in excess of 10A), The screw terminal can support up to 10A. Relay coil is rated for 12V DC. Opto isolated input is an added advantage of this board which separates the relay circuit electrically from TTL input.

Quantity

This board has a single SPDT relay which can switch up to 30A(Use the terminals on top of the relay for handling current in excess of 10A), The screw terminal can support up to 10A. The relay terminals (C, NC, NO) are accessible through screw terminals which makes wiring up very easy. Relay coil is rated for 12V DC. Place for soldering flyback diode or snubber circuit to eliminate the sudden voltage spike across the relay load while switching high current. Opto isolated input is an added advantage of this board which separates the relay circuit electrically from TTL input.

Number Of Relays 1
Relay Type Mechanical
Max Relay Current Rating 30A
Communication TTL Compatible Input

More information visit the supplier website

MRE03000
