 Beaglebone MISC CAPE
  •  Beaglebone MISC CAPE
  •  Beaglebone MISC CAPE
  •  Beaglebone MISC CAPE
  •  Beaglebone MISC CAPE

Beaglebone MISC CAPE

:PCO02002
€9.67

BB Black Expansion CAPE, Features Miscellaneous Components and Functions

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



What's on the MISC CAPE

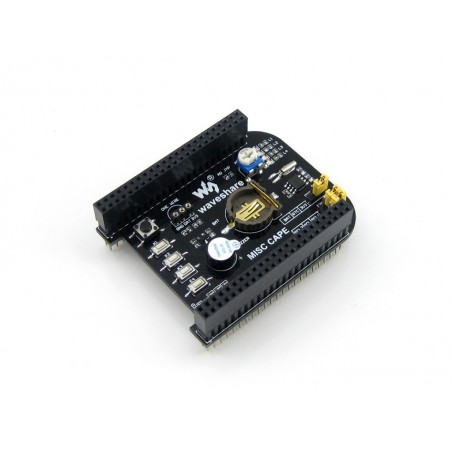

BB Black Expansion CAPE on board resource

  1. BB_BLACK connector : for connecting BB Black
  2. DEBUG interface : BB Black debug interface, for connecting serial modules
  3. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  4. BOOT selection button : Boot from TF card
  5. User button : 4 buttons
  6. Buzzer
  7. Power indicator
  8. User LED : 4 LEDs
  9. Potentiometer : AD adjustable potentiometer
  10. 32.768KHz crystal : for RTC
  11. PCF8563 : RTC
  12. RTC battery holder : for 3.3V battery
  13. RTC power selection jumper
  14. RTC I2C selection jumper: select I2C1 OR I2C2



Examples

Peripheral

Device/Interface

LINUX

LED

I/O

Y

Buzzer

PWM

Y

Push Buttons

EVENT2

Y

DS18B20 Temperature sensor

1-WIRE

Y

ADC

I/O

Y

RTC

I2C1

Y

PL2303 USB TO UART

UART0

Y

USB CAMERA

VIDEO0

Y

USB WIFI

WLAN0

Y



MISC CAPE Development Resources

MISC CAPE wiki

PCO02002
