 Beaglebone Arduino Adapter
  •  Beaglebone Arduino Adapter
  •  Beaglebone Arduino Adapter
  •  Beaglebone Arduino Adapter

Beaglebone Arduino Adapter

:PCO02001
€8.09

BB Black Expansion CAPE, Supports Arduino, Compatible with UNO (default) and Leonardo (by configuration)

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

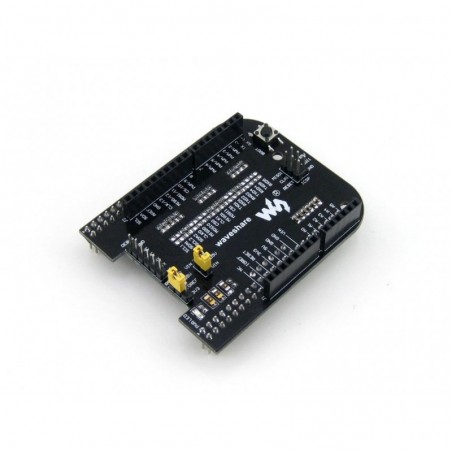

What's on the CAPE for Arduino

BB Black Expansion CAPE on board resource

  1. Arduino connector : for connecting compatible Arduino shields, such as Motor Control Shield
  2. ICSP interface : for uploading Arduino programs
  3. DEBUG interface : for debugging BB Black OR connected Arduino shields
  4. Power indicator
  5. BB Black BOOT selection button
  6. VIN voltage level selection jumper : connects to VDD5V OR custom power supply
  7. IOREF voltage level selection jumper : connects to SYS5V OR 3V3


CAPE for Arduino Photos




Downloads

Development resources:schematic, software, etc.
www.waveshare.com/CAPE_for_Arduino
