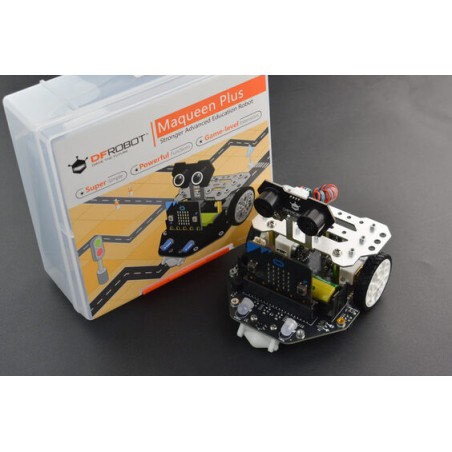

micro:Maqueen Plus - an Advanced STEM Education Robot for micro:bit
DFRobot micro: Maqueen Plus is a powerful and intelligent, advanced version of the micro: Maqueen Lite (4.0). The Maqueen Plus is optimized with better power management and a larger capacity power supply. It's ideal for use with the HuskyLens AI Vision Sensor, and comes with a larger and more stable chassis. It also features more built-in functions and more expansion ports. It's suitable for classroom teaching, and for after-school extended exercises and robot competitions.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
micro: Maqueen Plus is an advanced version of micro:Maqueen Lite (4.0), which is more powerful and intelligent. Optimized with better power management and larger capacity power supply, it can be perfectly compatible with HuskyLens AI Vision Sensor, which makes it an accessible AI robot teaching tool.
In addition, micro:Maqueen Plus comes with a larger and more stable chassis, more built-in functions and more expansion ports, it is not only suitable for classroom teaching, but also can be suitable for after-school extended exercises and robot competitions.
(Note: micro:bit board and batteries are not included.)
What is micro: Maqueen Series?
micro: Maqueen launched by DFRobot is a series of educational robot products for primary and secondary school programming. It includes a cost-effective “Lite”version, a powerful “Plus” version, and rich peripherals such as “Mechanic”. You can choose different versions and peripherals based on your needs.
Selection Guide for micro:Maqueen series
|Name||micro: Maqueen Lite||micro: Maqueen Plus|
3 AAA Batteries or CR123A Lithium battery
18650 Li-ion battery
|Encoder and PID control||×||√|
|Support for installing Huskylens AI camera||×||√|
|Support for line-tracking sensor calibration||√||√|
|Support for analog reading of line-tracking sensor||×||√|
|Number of line-tracking sensor||2||6|
|Number of IO expansion port||4||12|
|Number of servo port||2||3|
|Number of mechanic expansion thread||2||16|
|Motor rated rotation speed||133 rpm||260 rpm|
|LED color||Red LED||Large size RGB LED with 7 colors|
|Ultrasonic Model||H-SR04||DFRobot high-quality URM10 ultrasonic sensor|
|Continuous usage time with Huskylens||30min||180min|
|Standard continuous usage time||8h||24h|
|Come with line-tracking map||×||√|
|Onboard IR receiver and buzzer||√||√|
|Onboard WS2812 RGB LED||√||×|
|Application Scenario||Entry level classroom teaching||Intermediate level teaching, after school workshop, robot competition|
What makes micro:Maqueen Plus so powerful?
High Capacity Lithium Battery
• Powered by18650 high capacity lithium battery.
• Onboard charging circuit and battery indicator.
• 6 line tracking sensors to allow complex routine programs and complicated maze algorithms.
• Supports analog readings and sensor calibrations with only one key.
Rich Extension Interfaces
• 9 GPIO expansion ports, 3 I2C extension ports, 3 servo expansion ports.
• 12 M3 threaded connections.
• Fully compatible with micro: Maqueen Mechanic and HuskyLens AI vision sensor.
High Speed Metal Motor
• 260 RPM high speed metal motor; higher travel speed and well suitable for robot competitions.
Motor with Encoder and PID Control
• 2 encoders to read real-time speed and direction, thus multiple cars running in the same map can be smoother.
• PID control for a stronger moment force in low speed.
• 2 large-size RGB LEDs, supports 6 colors displaying.
• Onboard infrared receiving sensor and buzzer.
• Free high-quality ultrasonic sensor, which performs better than SR04 version.
• One free line-tracking map for user-friendly experience.
Large and Stable
A larger size and more stable chassis than micro: Maqueen Lite, which is available for combining with more accessories.
- Power Supply: 3.7V-18650 lithium battery
- Charging Voltage: 5V
- Charging Current: 900mACharging Time: 4h
- Battery Indicator: 4 LEDs
- Drive Motor: N20 motor 260 rpm
- Buzzer * 1
- RGB-LED * 2
- GPIO Expansion Ports：P0 P1 P2 P8 P12 P13 P14 P15 P16
- I2C Expansion Ports * 3
- Servo Expansion Ports *3
- Line Tracking Sensors *6
- Line Tracking Sensor Output Data: analog + digital
- Line Sensor Calibration: support
- Infrared Receiving Sensor *1
- Ultrasonic Sensor: URM10
- Top Metal Plate * 1
- M3 threaded connections *12
- Map Size: 50cm*50cm
- Dimension: 107x100mm/4.21 x3.94”
- micro:Maqueen Wiki with 10 Projects
- Rich Tutorials and Courses for micro:Maqueen Plus
- Rich Tutorials and Courses for micro:Maqueen Plus+HUSKYLNES
- Download Mind+ For Free
- MU-MicroPython(Designed for micro:Maqueen Lite and micro: Maqueen Plus)
- Maqueen Plus *1 (micro:bit board and batteries are not included.)
- Ultrasonic Sensor *1
- Top Metal Plate * 1
- Wheel *2
- Copper Pillar *3
- Instructions *1
- Line-tracking Map *1
