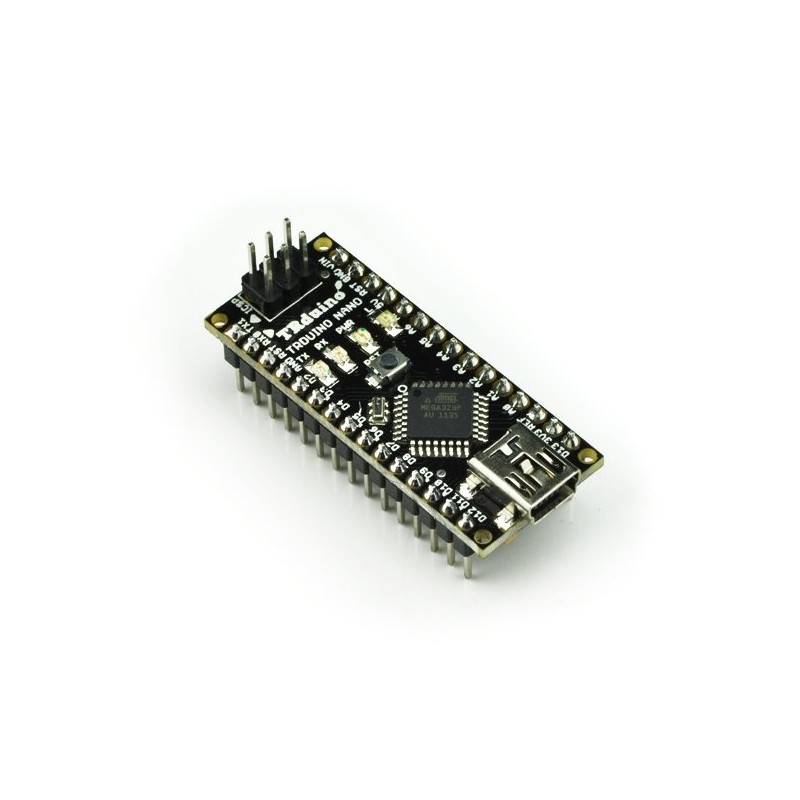

Tosduino Nano
  • Tosduino Nano

Tosduino Nano

:ARD02033
€11.71
€8.09 Save €3.62
Tax included
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

The Tosduino Nano can be powered via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.

Specifications:

  • Microcontroller Atmel ATmega328
  • Operating Voltage (logic level) 5 V
  • Input Voltage (recommended) 7-12 V
  • Digital I/O Pins 14 (of which 6 provide PWM output)
  • Analog Input Pins 8
  • DC Current per I/O Pin 40 mA
  • Flash Memory 32 KB (of which 2KB used by bootloader)
  • SRAM 2 KB
  • EEPROM 1 KB
  • Clock Speed 16 MHz


Features:

  • Automatic reset during program download
  • Power OK blue LED on the bottom
  • Green (TX), red (RX) and orange (L) LED
  • +5V to AREF jumper
  • Auto sensing/switching power input
  • Small mini-B USB for programming and serial monitor (cable not included)
  • ICSP header for direct program download
  • Power OK blue LED on the bottom
  • Standard 0.1” spacing DIP (breadboard friendly)
  • Manual reset switch



Package include:

  • 1* Tosduino Nano  With Free USB Cable
ARD02033
