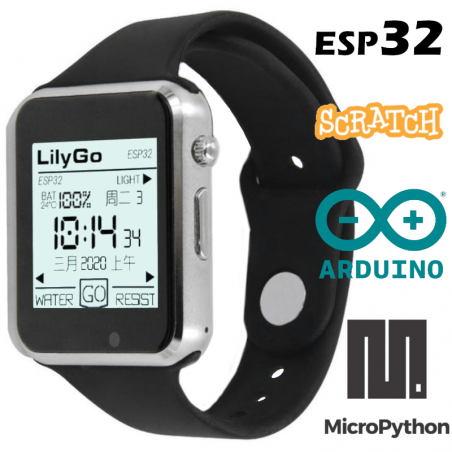

T-Watch-2020 ESP32 - LilyGO Arduino Scratch Programmable SmartWatch

:ARD02100
€34.55

T-Watch-2020 Powered by an ESP32, the new T-Watch includes accelerometer, real-time clock, speaker, vibration motor, and an IR receiver.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction



LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction(1)

LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction

LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction

LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction

LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction

LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction(1)

Product Description

Hardware Specifications
Chipset ESP32, dual-core MCU, PMU power management
FLASH QSPI flash 16MB
SRAM  520 KB SRAM / PSRAM  8MB
Button Power key
USB to TTL CP2104
On-board clock 40MHz crystal oscillator
Working voltage 2.7V-3.6V
Working temperature range -40℃ ~ +85℃
Weight
58.5g
Display:  1.54 inch LCD capacitive touch screen
Sensor: BMA423 three-axis accelerometer, built-in step counting algorithm, activity recognition / tracking, advanced gesture recognition.
RTC clock :  PCF8563



Power Supply Specifications


Power Supply Micro USB (5V/1A)
Charging current The charging current is programmable and self-adjustable

Battery / Model

lithium battery / LS-Q1



Wi-Fi


Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
Protocol 802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
Frequency range 2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power 22dBm
Communication distance 300m



Bluetooth


Protocol meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency CVSD&SBC audio frequency



Software specification


Wi-Fi Mode Station/SoftAP/SoftAP+Station/P2P
Security mechanism WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type  AES/RSA/ECC/SHA
Firmware upgrade UART download/OTA(Through network/host to download and write firmware)
Software Development Support cloud server development /SDK for user firmware development
Networking protocol IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User Configuration AT + Instruction set, cloud server, android/iOSapp
OS FreeRTOS



More Information:



Micropython ESP32 firmware download address



https://micropython.org/download/esp32/



Youtube Video(Basic tutorial for beginners



https://www.youtube.com/watch?v=msLVt6-G_Kg



Product Pin

LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction(1)

Product Size

LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction





LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction(1)



Notice

LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction(1)LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction(1)LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction(1)




Product Detail

LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction(1)

LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental InteractionLILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental InteractionLILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction

Product Display



LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction
LILYGO® TTGO T-Watch-2020 ESP32 Main Chip 1.54 Inch Touch Display Programmable Wearable Environmental Interaction



Shipping List



1 X T-Watch-2020
1 X Micro USB Charging Cable
