Arduino Yún Rev 2

:ARD02068
€55.12
Tax included

The Yún rev. 2 with the power of a Linux based system that enables advanced network connections and applications.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

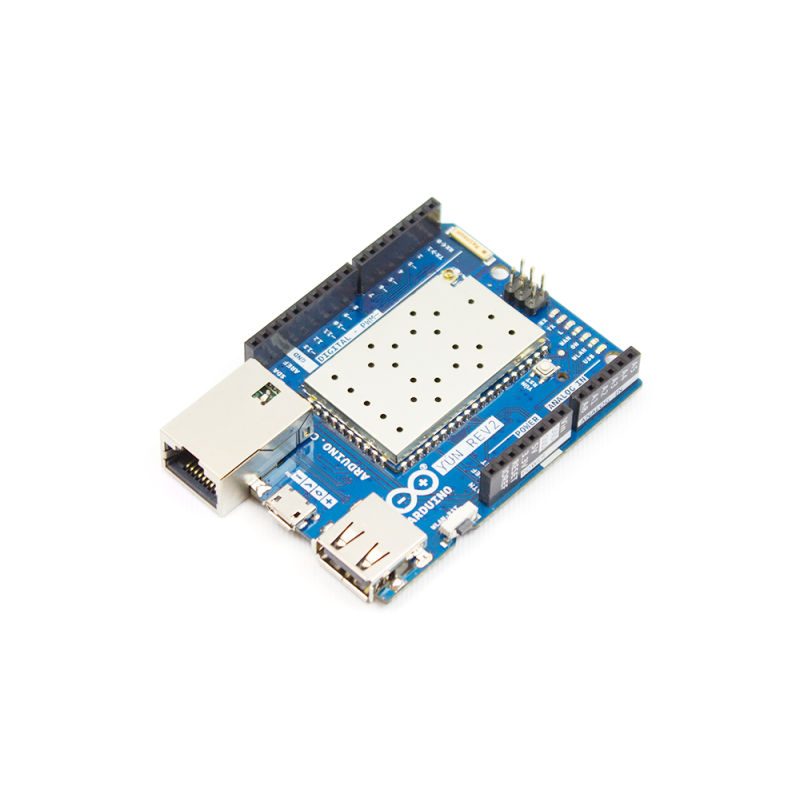

The Yún rev. 2 with the power of a Linux based system that enables advanced network connections and applications.
Connection to your WiFi or wired network is simple thanks to the Yún Web Panel and the dedicated ''YunFirstConfig'' sketch. The Web panel allows you to manage your shield preferences and upload your sketch. The Yún rev. 2 uses the Bridge library and so extends the board capabilities by using the Linux processor.

As always, every element of the platform – hardware, software and documentation – is freely available and open-source. This means that you can learn exactly how it's made and use its design as the starting point for your own projects.

Need Help?



AVR Arduino microcontroller


Microcontroller ATmega32U4
Operating Voltage 5V
Input Voltage 5V
Digital I/O Pins 20
PWM Output 7
Analog I/O Pins 12
DC Current per I/O Pin 40 mA on I/O Pins; 50 mA on 3,3 Pin
Flash Memory 32 KB (of which 4 KB used by bootloader)
SRAM 2.5 KB
EEPROM 1 KB
Clock Speed 16 MHz

Linux Microprocessor


Processor Atheros AR9331
Architecture MIPS
Operating Voltage 3.3V
Ethernet 802.3 10/100Mbit/s
WiFi 802.11b/g/n 2.4 GHz
USB Type 2.0 Host
Card Reader Micro-SD
RAM 64 MB DDR2
Flash Memory 16 MB
Clock Speed 400 MHz




Documentation:

OSH: Schematics

The Yún Rev. 2 is open-source hardware! You can build your own board using the following files:

Compatibility

The Yún Rev. 2 board allows you to connect to the internet using the onboard WiFi or Ethernet connection. Furthermore thanks to the Bridge library it able to extend the functionalities of the Microprocessor by using the computational power of the Linux processor on the shield. Using the Yún Web Panel it is also possible to configure all the shield-related features and remotely upload sketches on the board connected to the shield.

On-board Indicators

The shield contains a number of signalling LEDs:

  • ON (green): indicates that the shield is properly powered
  • WLAN (blue): indicates a connection to a wireless network
  • WAN (red): indicates connection to ethernet
  • USB (white) : indicates system activity and/or if a USB key is mounted
