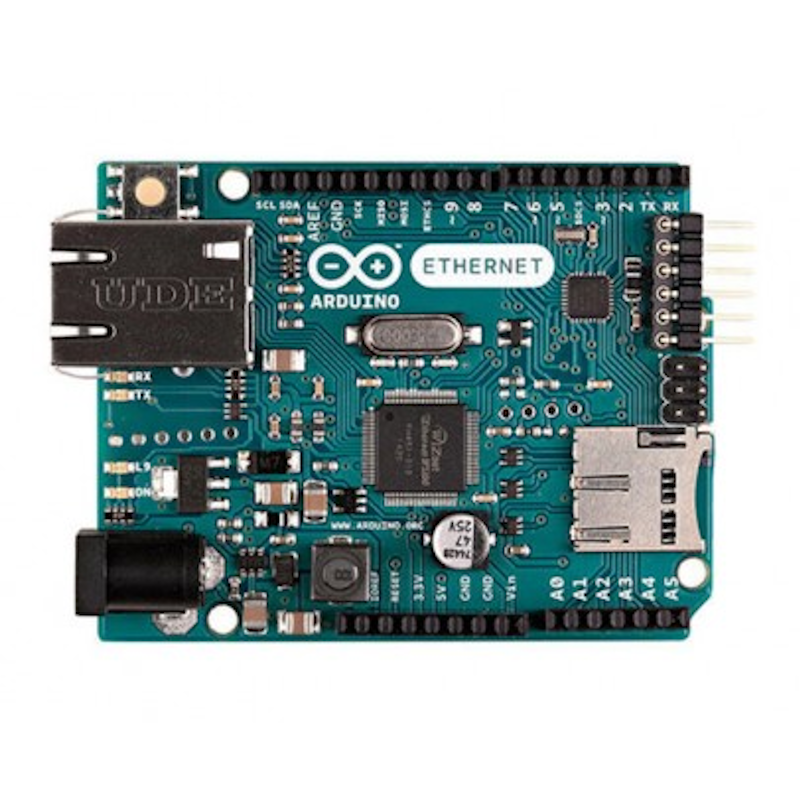

Arduino Ethernet Rev3 without PoE
NB: Pins 10, 11, 12 and 13 are reserved for interfacing with the Ethernet module and should not be used otherwise. This reduces the number of available pins to 9, with 4 available as PWM outputs.
An optional Power over Ethernet module can be added to the board as well.
The Ethernet differs from other boards in that it does not have an onboard USB-to-serial driver chip, but has a Wiznet Ethernet interface. This is the same interface found on the Ethernet shield.
An onboard microSD card reader, which can be used to store files for serving over the network, is accessible through the SD Library. Pin 10 is reserved for the Wiznet interface, SS for the SD card is on Pin 4.
The 6-pin serial programming header is compatible with the USB Serial adapter and also with the FTDI USB cables or with Sparkfun and Adafruit FTDI-style basic USB-to-serial breakout boards. It features support for automatic reset, allowing sketches to be uploaded without pressing the reset button on the board. When plugged into a USB to Serial adapter, the Arduino Ethernet is powered from the adapter.
The Revision 3 of the board introduces the standardized 1.0 pinout, that consist in:
- added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, this will the opportunity to shield that use i2c or TWI components to be compatible with all the Arduino boards;
- the IOREF that allow the shields to adapt to the voltage provided from the board. Shields that use the IOREF pin will be compatible both with the board that use the AVR, which operate with 5V and with the Arduino Due that operate with 3.3V. Next to the IOREF pin there is a not connected pin, that is reserved for future purposes.
|Input Voltage Plug (recommended)||7-12V|
|Input Voltage Plug (limits)||6-20V|
|Input Voltage PoE (limits)||36-57V|
|Digital I/O Pins||14 (of which 4 provide PWM output)|
|Arduino Pins reserved:|
|10 to 13 used for SPI|
|4 used for SD card|
|2 W5100 interrupt (when bridged)|
|Analog Input Pins||6|
|DC Current per I/O Pin||40 mA|
|DC Current for 3.3V Pin||50 mA|
|Flash Memory||32 KB (ATmega328) of which 0.5 KB used by bootloader|
|SRAM||2 KB (ATmega328)|
|EEPROM||1 KB (ATmega328)|
|Clock Speed||16 MHz|
|W5100 TCP/IP Embedded Ethernet Controller|
|Power Over Ethernet ready Magnetic Jack|
|Micro SD card, with active voltage translators|
