Iboard

:ARD03072
€19.43
€14.43 Save €5.00
Tax included

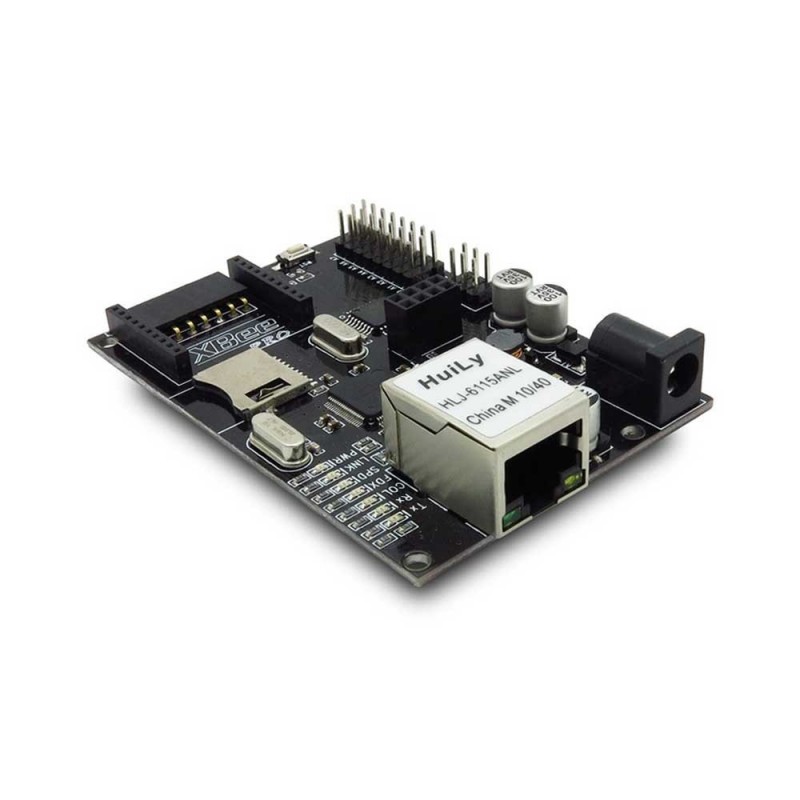

Iboard is a unique Arduino platform which features a WIZnet ethernet port, an XBee socket, nRF24L01+ wireless interface and an ATMega328. This board will add wireless XBee / nRF24L01+ control as well as internet connectivity to your projects. It’s great for anything from home automation to robot control.

Quantity

Overview



Iboard is a unique Arduino board which features a WIZnet ethernet port, an XBee socket, nRF24L01+ module interface and an ATMega328. This board will add wireless XBee / nRF24L01+ control as well as internet connectivity to your projects. It’s great for anything from home automation to robot control. The possibilities are endless!

Iboard can be used as an Ethernet, wireless communication project development platform. Iboard support POE (power on Ethernet) power supply, and Micro SD for mass storage. There are some 3pin electronic brick/ sensor brick interface breakout on board, it offer an easy way for a quick prototyping. You can setup a web server through which you may communicate with a remote Arduino using XBee radios, bluetooth or APC modules. This information can be posted to a web site, or to Twitter.

The board requires FTDI basic board to upload sketch, you can use our Foca board to do it. Iboard can be powered by a mini USB , power Jack or POE.



Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.



Microcontroller

ATMega328P

Max Frequency

16MHz

RAM Capacity

2K

FLASH Capacity

32K

External Resources

  • Onboard SD socket

  • Onboard Ethernet

  • Electronic Brick Interface

Power Supply

  • External 12V

  • External 24V

  • External 3.3V

  • External 7V

  • External 9V

  • USB 5V

I/O Operation Level

3.3V

Board Size

80mm x 54mm

Model

IM120410001

Version

1.1

Weight

45.00g

Accessories

No



Datasheet

Demo Code

Schematic

Fritzing Parts

ARD03072
